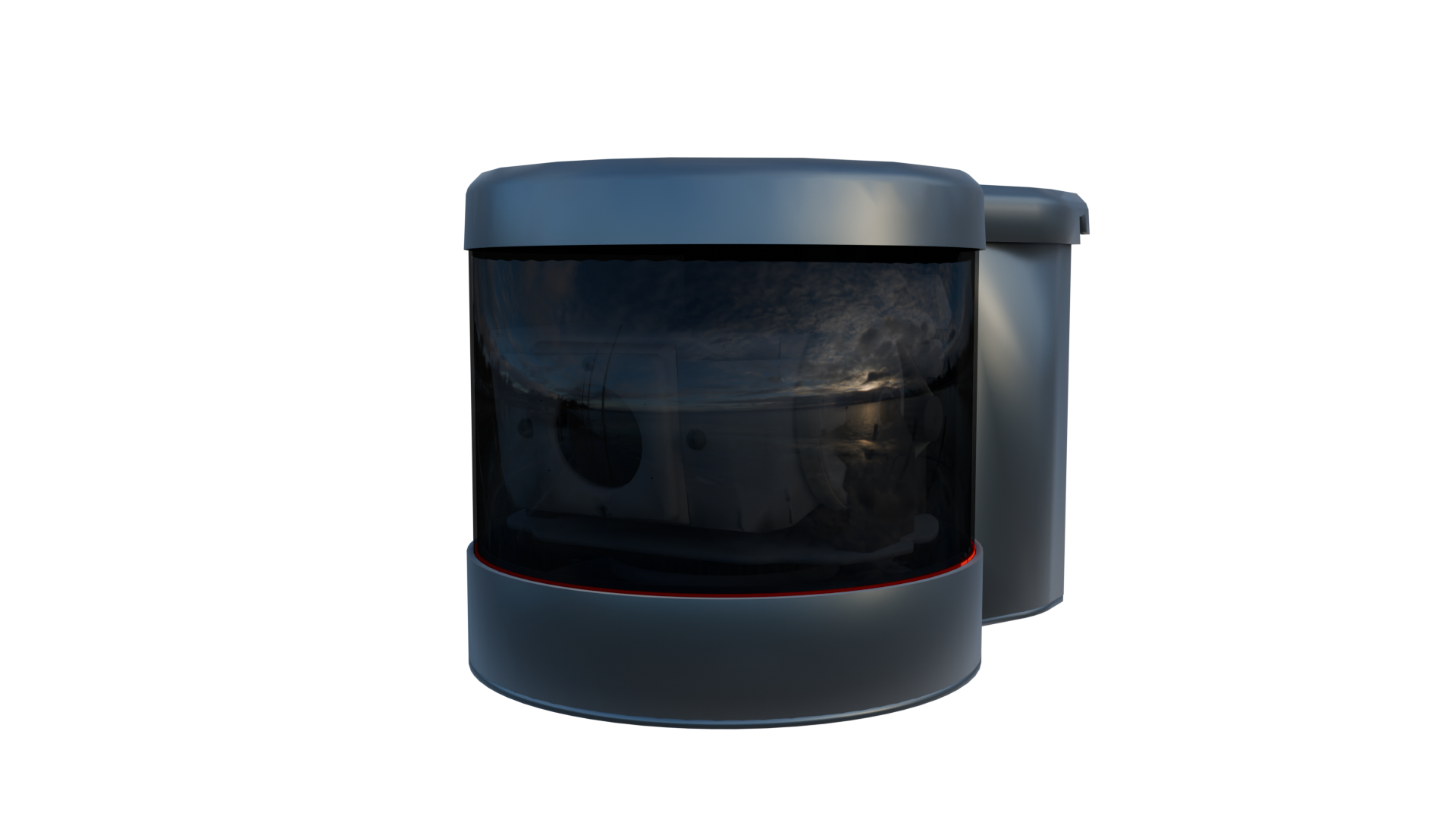

The Longbow

The Transopto Longbow is a wireless optical bridge. It is available at 1Gbps , 10Gbps or 800Gbps.

The unique beam pointing technology enables transparent bridging of single mode fibres. The 1G and 10G units come with SFP-interface.

The 800G unit comes with a single mode fiber interface which is transparent and protocol indifferent in the c-band
(1530nm – 1565nm).

Rural

Residential

Business

Industrial

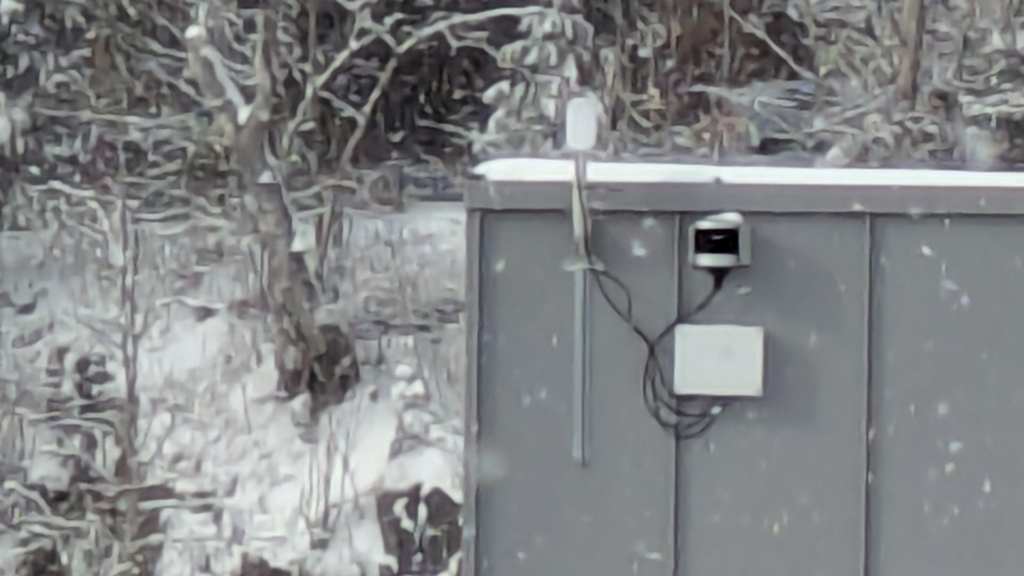

Optical Link mounted on barn wall roof

Connect your garage, barn, utility shed, or boathouse and install
HD CCTV without worrying about bandwidth or interference.

Click here to view an example

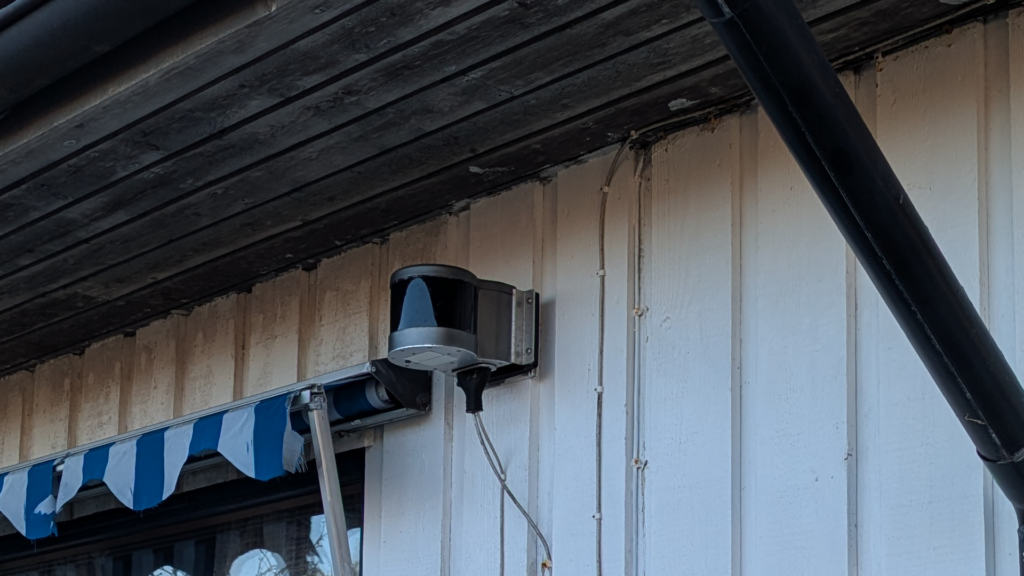

Optical Link mounted on a house wall, under an awning.

Is trenching a fiber to your
house cumbersome?
Use the Longbow and obtain full fiber speed without the hassle.

Trenching fiber in urban environments can be costly.
The Longbow to extend your customer base to include homes that would otherwise be too
expensive to connect.

Daisy chain up to 10 links to provide each customer with full 1gbps symmetrical service.

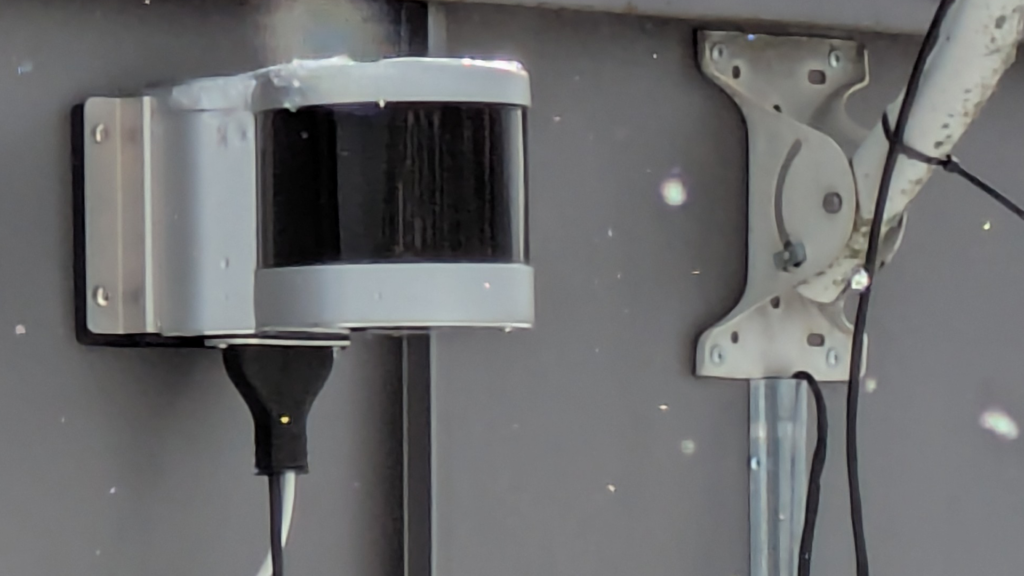

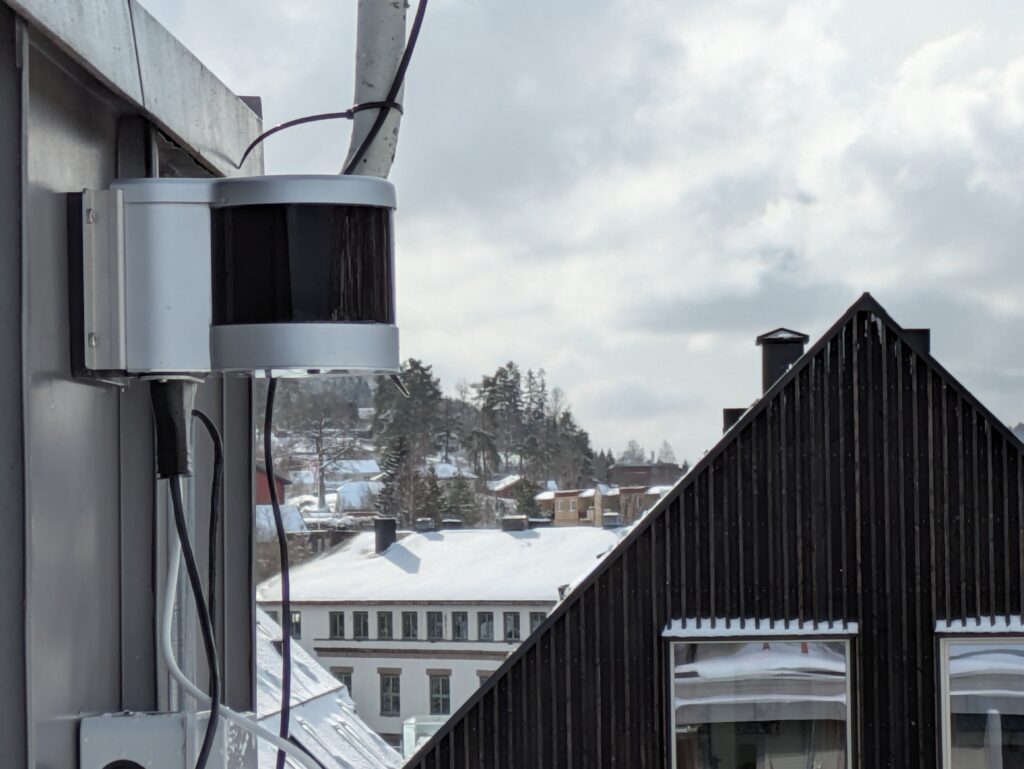

Optical Link mounted to an wall on a roof of a building

Connect multiple building to your central building management system using the Longbow from rooftop to rooftop. Avoid renting expensive dark fiber.

Click here to view an example

Longbow Tiers

SpecificationsLongbow Optical Link marked with 1GProduct BrochureLongbow Optical Link marked with 10GProduct BrochureLongbow Optical Link marked with 800GProduct Brochure
Range250 Meters250 Meters250 Meters
Bitrate1 Gbps20 Gbps800 Gbps
ProtocolEthernetEthernetAgnostic “Dark Fiber)
InterfaceSFP- slotSFP+ slotLC/PC Fibre Optic Connector
Wavelength155013101530-1565
Optical Power<1dBm<6dBmDefined by user (20dBm Max)
Laser Class1M1M1M
AlignmentCamera Based, MotorizedCamera Based, MotorizedCamera Based, Motorized
Active TrackingYesYesYes
PowerPoE <5WPoE+ <7WPoE <5W
ManagementOut-of-band, internal WebserverOut-of-band, internal WebserverOut-of-band, internal Webserver
Dimensions (mm)180 x 150 x 130180 x 150 x 130180 x 150 x 130
Weight1kg1kg1kg
